Product Details:
|
| Product Name: | Quick Release 150mm Ductwork Flange Clamps | Materials: | Stainless Steel, Carbon Steel |
|---|---|---|---|
| Diameter: | 80-600mm | Application: | Dust Collection System And Ventilation System |
| Sample: | For Free | Type: | Quick Lock Install Duct Clamp |
| Surface Treatment: | Zinc Plated | Label: | Accept Customized |
| Highlight: | 150mm pipe quick release clamp,ductwork flange pipe quick release clamp,150mm quick release pipe clip |
||

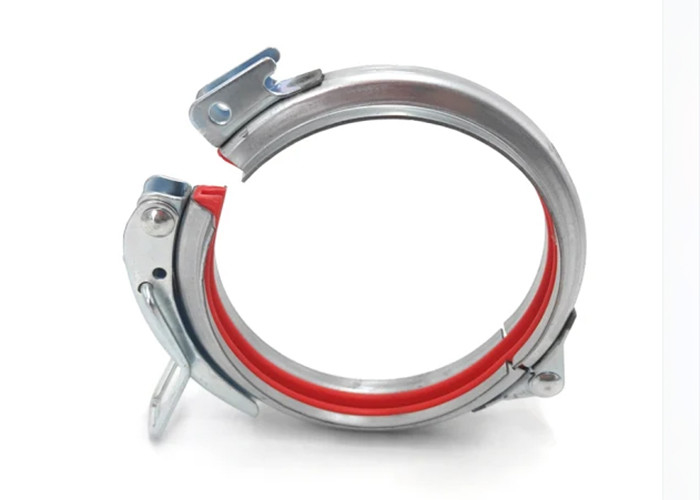

Quick Release 150mm Ductwork Flange Clamps For Dust Extraction System
Introduction of Duct Flange Clamps:
Duct clamps with hinge and handle. It is equipped with an insert specially designed for duct systems made from 1 and 2 mm steel plate. The clamp are zinc plated and used for fast and tight assembly of the duct systems.
We can supply adapters to connect to other systems such as spiral ducting, Nordfab clipped ducting and most other ductwork systems.
Specification of Duct Flange Clamp:
|
Diameter MM |
PRODUCT CODE |
A MM |
H MM |
THICKNESS MM |
| 80 | BMG80 | 28 | 8 | 1 |
| 100 | BMG100 | 28 | 8 | 1 |
| 120 | BMG120 | 28 | 8 | 1 |
| 125 | BMG125 | 28 | 8 | 1 |
| 140 | BMG140 | 28 | 8 | 1 |
| 150 | BMG150 | 28 | 8 | 1 |
| 160 | BMG160 | 28 | 8 | 1 |
| 180 | BMG160 | 28 | 8 | 1 |
| 200 | BMG200 | 28 | 8 | 1 |
| 225 | BMG225 | 28 | 8 | 1 |
| 250 | BMG225 | 28 | 8 | 1 |
| 275 | BMG275 | 28 | 8 | 1 |
| 300 | BMG300 | 28 | 8 | 1 |
| 315 | BMG315 | 28 | 8 | 1.2 |
| 330 | BMG330 | 28 | 8 | 1.2 |
| 350 | BMG350 | 28 | 8 | 1.2 |
| 400 | BMG400 | 28 | 8 | 1.2 |
| 450 | BMG450 | 28 | 8 | 1.2 |
| 500 | BMG500 | 28 | 8 | 1.2 |
| 550 | BMG550 | 28 | 8 | 1.2 |
| 600 | BMG600 | 28 | 8 | 1.2 |
Our advantage:
1, we are factory, can supply you lowest price and best quality
2, we have strong team, professional engineer and sales man, after-sale serive.
3, Before delivery, most products will be inspected to promise customers get qualtiy goods.
4, OEM products are acceptable.
5, except for clamps, we also supply other ductwork fittings.
Please call 0086-15028109230 if you require any assistance or help choosing the correct products.
About our company:
We are the leading manufacturer and develop a series of round duct & fittings for industy dust collection system of ship and buiding . At the same time, we also supply modular ducting for ventilation system.
Products for Dust collection system including: pressed bend, pneumatic sliding damper, manual sliding damper ,duct clamps, wide/slim pull rings and so on
Products for Ventilation system products including: half elbow, duct reducer, pressed collar saddle, Tee piece and so on.
Our advantage: factory price, fast delivery and good service.
